3db BeO AlN Al2O3 Flange Attenuators 10 Watt To 250 Watt

  • 1
  • 2

Brand Name : YLT

Place of Origin : China

Model Number : chip

Price : Negotiable

Payment Terms : T/T, L/C, Western Union, MoneyGram, Paypal

Delivery Time : 5-8 work days

MOQ : 100PCS

Supply Ability : 13Million PCS for RF Resistor, 7Million PCS for RF Attenuator

Packaging Details : Inside Box + Outside Carton Plus Pallet or Wooden Case if Necessary

Impedance : 50 Ω

Power Rating : 2～400w

Substrate Material : BeO、AlN、Al2O3

Attenuation Value : 1～30dB

Attenuation Tolerance : 1～10dB ±0.6dB 11～20dB ±0.8dB 21～30dB ±1.0dB

Frequency : DC～6GHz

Operating Temperature : -55～+150℃

Temperature Coefficient : ≤ 150ppm/℃

Contact Now

Flange Mount Attenuators 10w 30w 50w 250w 3db 20db 30db BeO AlN Al2O3

  • 输入阻抗(Impedance):50 Ω
  • 额定功率(Power Rating):2～400Watts
  • 基片材料(Substrate Material):BeO,AlN,Al2O3
  • 衰减值(Attenuation Value):1～30dB可选(optional parameters)
  • 衰减公差(Attenuation Tolerance):1～10dB ±0.6dB
  • 11～20dB ±0.8dB
  • 21～30dB ±1.0dB
  • (Frequency):DC～6GHz
  • (Operating Temperature):-55～+150℃
  • (Temperature Coefficient):≤ 150ppm/℃
  • RoHS Compliant

(We can provide the customized product according to the customers’ requirement, such as Lead Length Attenuation Value and Configuration. )

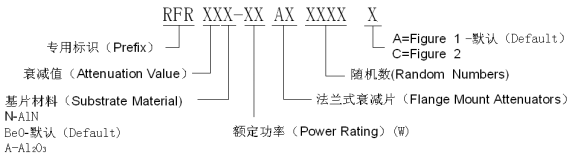

产品规格Product Reference

额定功率 衰减值 频率 最大驻波 尺寸(mm) 产品型号
Power Rating Attenuation Frequency (Max) Dimensions Model
(W) Value(dB) (GHz) VSWR W L T H I Tw 　
10 3 DC-3G 1.20 2.5 5 1.5 N/A N/A N/A RFR3N-10ADN0302B
10 20 DC-6G 1.25 4 4 1 N/A N/A N/A RFR20-10ABE0702A
10 20 DC-6G 1.25 4 4 1 N/A N/A N/A RFR20-10ABE0702A
30 XX DC-6G 1.35 6 6 1 N/A N/A N/A RFRXX-30ADJ11XXA
30 XX DC-6G 1.35 6 6 1 N/A N/A N/A RFRXX-30ADJ11XXA
50 XX DC-6G 1.35 6 6 1 N/A N/A N/A RFRXX-50ABR11XXA
250 30 180MHz 1.10 12.7 12.7 1.4 N/A N/A N/A RFR30-250ABCH2704B

3db BeO AlN Al2O3 Flange Attenuators 10 Watt To 250 Watt

3db BeO AlN Al2O3 Flange Attenuators 10 Watt To 250 Watt
